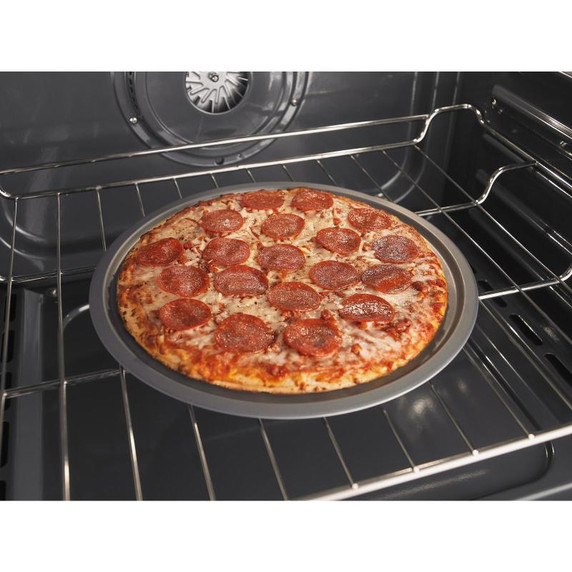

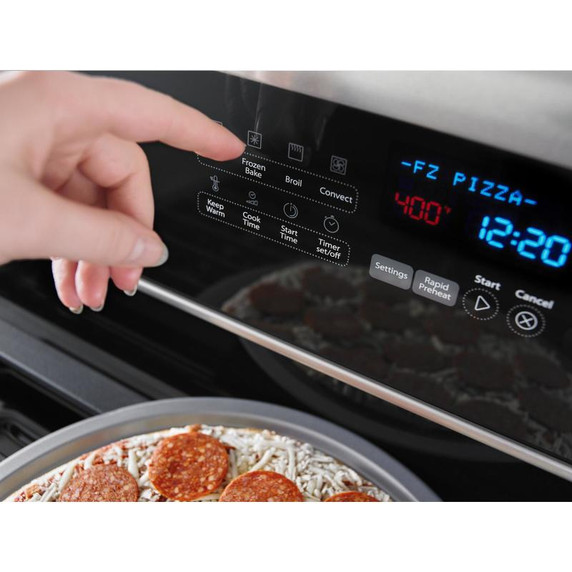

Frozen Bake™ TechnologySkip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster.

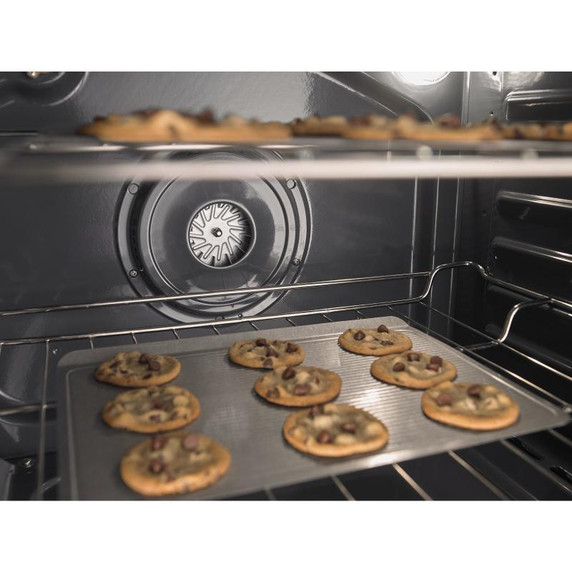

True Convection CookingTrue convection cooks food faster by using a rear fan and third heating element to circulate hot air over, under, and around food.
FlexHeat™ Triple Radiant ElementThe FlexHeat™ triple radiant element is like having three elements in one. A 6" inner ring is great for smaller pots and pans, while 9" and 12" outer rings make room to heat larger cookware.
Convection ConversionTake the guesswork out of convection cooking with Convection Conversion. It takes the normal cooking time and temperature and turns it into the faster convection equivalent for you.

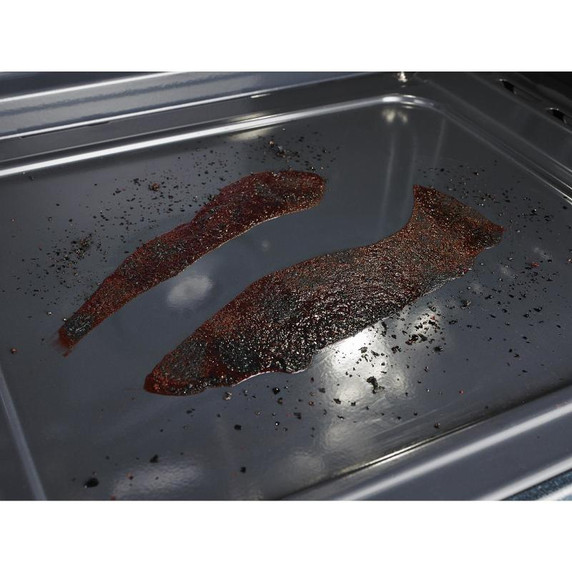

AquaLift® Self-Clean technologyEnjoy odor-free cleaning without harsh chemicals in only 50 minutes.* AquaLift® self-cleaning technology uses only water and low heat to help remove baked-on foods from the bottom of the oven.*Based on average cleaning time of self-clean cycle with water and moderate soils.
Temperature SensorA built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.
Rapid PreheatSave time when you only need to bake on one rack. Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly.
6.4 Cu. Ft. Capacity6.4 Cu. Ft. Capacity
Easy-Wipe Ceramic Glass CooktopEasy-Wipe Ceramic Glass Cooktop
Large Oven WindowLarge Oven Window

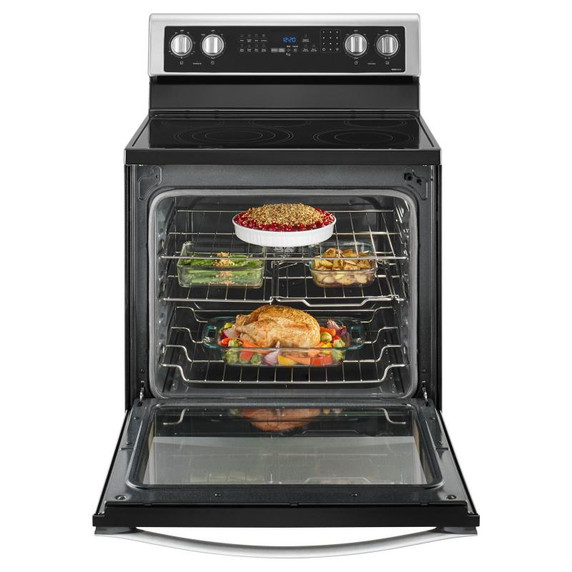

Max Capacity RackMax Capacity Rack
Hidden Bake ElementEasily clean your oven without an exposed bake element in the way.
Dishwasher-Safe KnobsDishwasher-Safe Knobs
Country Of OriginUSA
Optional AccessoriesW10355051B
Extended Service Plan ParentEW06IW2Y, EW06IW4Y, EW06IW1Y
Product To Product PairsUXT5530AAS, WVW53UC0HV, UVL5430JSS, WVW73UC0LS, WVU17UC0JW, WVW51UC0LS, WVW57UC0FS, WVU57UC0FS, WVU37UC0FS, UXT5230BDS, WVU17UC0JS, UXT4130ADS, WVW53UC0LS
Dishwasher SafeNon
Volts120
Hz60
Amps40
Power Cord IncludedOui
Handle MaterialMétal
Handle TypePoignée facilement accessible
Handle ColorAcier inoxydable
Door RemovableOui
Drawer TypeTiroir de rangement
Size In30
Range TypeNon encastrée
Left Front Element Burner Power3000W
Left Rear Element Burner Size6in.
Right Front Element Burner Power3000W
Right Front Element Burner Size9in./6in.
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Number Of Cooking Element Burners5
Center Rear Element Burner Power100W
Left Front Element Burner Size12in./9in./6in.
Cooktop Control LocationBackguard
Left Rear Element Burner Power300W/1300W
Cooktop Control TypeBoutons
Cooktop Surface ColorNoir
Cooktop Element StyleDessus lisse
Left Front Element Burner TypeRadiant standard
Right Rear Element Burner TypeRadiant standard
Center Rear Element Burner TypeRadiant standard
Left Rear Element Burner TypeFonte radieuse
Right Front Element Burner TypeFonte radieuse
Number Of Oven Lights1
Number Of Oven Racks3
Oven Control LocationRear Control
Number Of Rack Guides7
Oven Interior Depth In Inches20.75
Oven Interior Width In Inches24.38
Bake Element Power3600W
Convection Element Power Watts925
Hidden Bake ElementOui
Oven Light Switch LocationContrôle du four
Convection FunctionsCuisson; Grillage; Rôtissage
Broiler LocationDessus du four
Cooktop Surface Materialverre
Oven Rack Type2 Norme and 1 Capacité maximale
Broiler Element Power3 600W
Interior ColorGris
Oven Cleaning TypeAutonettoyage AquaLift®
Oven Control TypeCommandes numériques
Oven Control Knob TypePlastique
Convection Element TypeVéritable
Energy Rating Kwh Year590
ULOui
CULOui
Annual Energy Usage Kwh590
Oven ConfigurationFour simple
Range ConfigurationNon encastré
Heating Element On Indicator LightOui
LP ConvertibleNon
Automatic Convection Conversion Temperature AdjustNon
Hot Surface Indicator LightOui
Power Outage CompatibleNon
Natural Gas ConvertibleNon
Fuel TypeÉlectrique
Knob TypeLavable au lave-vaisselle
Knob ColorCouleurs assorties
Whr RangeAutonettoyant; Bouton à lame; Certification Mode Sabbat / Star-K; Grilles articulées EZ-2-Lift ™; Poignée Whirlpool; Technologie Frozen Bake ™; Vraie convection; Élément Triple Radiant FlexHeat ™; Élément double FlexHeat ™
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"
Depth Closed Excluding Handles25.31"
Depth With Door Open 90 Degree47.81"
Depth27.75"
Gross Weight187.0 lbs.
Height46.88"
Maximum Height47.88"
Minimum Height46.88"
Width29.88"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)6.4
