Whirlpool® 5.8 Cu. Ft. Smart Freestanding Gas Range with EZ-2-Lift™ Grates WFG975H0HV
Whirlpool
Whirlpool® 5.8 Cu. Ft. Smart Freestanding Gas Range with EZ-2-Lift™ Grates WFG975H0HV
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Extended Service Plan ParentEW07IW1Y, EW07IW2Y, EW07IW4Y
Optional Accessories4396096RB, W11123246
Product To Product PairsWVW57UC0FS, WVW53UC0LS, WVU17UC0JW, WVU57UC0FS, WVU37UC0FS, WVW51UC0LS, WVW53UC0HV, WVW73UC0LS, WVU17UC0JS, UXT5530AAS, UVL5430JSS
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Certifications
ULYes
ADA CompliantNo
CULYes
Exterior
Handle ColorStainless Steel
Door RemovableYes
Handle MaterialStainless Steel
Drawer TypeStorage Drawer
Handle TypeReach-Through Handle

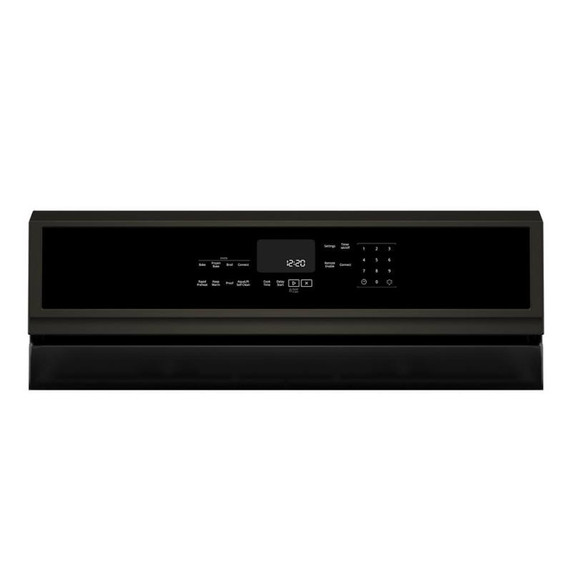

Controls
Knob TypeWeighted
Electronic Display TypeDigital
Knob ColorBlack Stainless

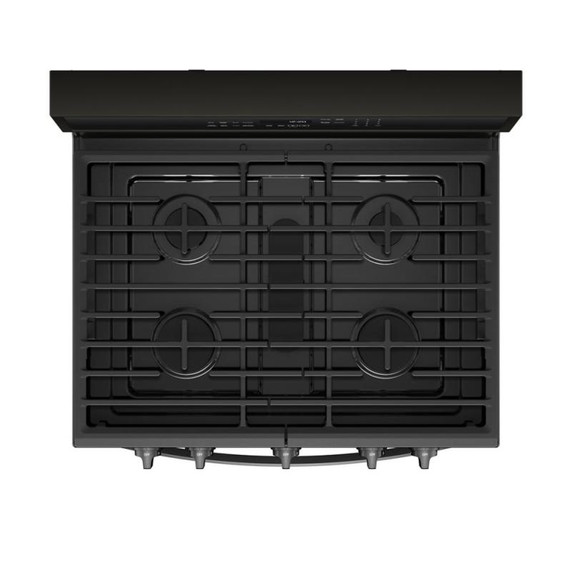

Cooktop Details
Cooktop Element StyleSealed Burners
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Number Of Cooking Element Burners5
Center Rear Element Burner TypeSealed Burner
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner TypeSealed Burner
Left Front Element Burner TypeHigh Output
Right Front Element Burner Power15000BTU
Auto Re IgnitionNo
Number Of Grates2
Left Front Element Burner Power18000BTU
Right Rear Element Burner TypeSimmer
Right Rear Element Burner Power5000BTU
Left Rear Element Burner Power9500BTU
Ignition TypeDirect Spark Ignition
Center Rear Element Burner Power8000BTU
Grate DetailsDishwasher Safe; Hinged; Matte Finish; Porcelain Coated Cast Grates; Recessed
Features
GriddleYes
Hot Surface Indicator LightNo
LP ConvertibleYes
Natural Gas ConvertibleYes
Automatic Convection Conversion Temperature AdjustNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Compatibility
Works WithAmazon Alexa; Android; Google Assistant; iOS
ConnectivityApp; Remote Access; Voice Controlled; WiFi
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Details
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Oven Light Switch LocationOven Control
Interior ColorGrey
Oven Cooking SystemConvection
Number Of Oven Lights1
Oven Light TypeIncandescent
Broiler Element Power11000BTU

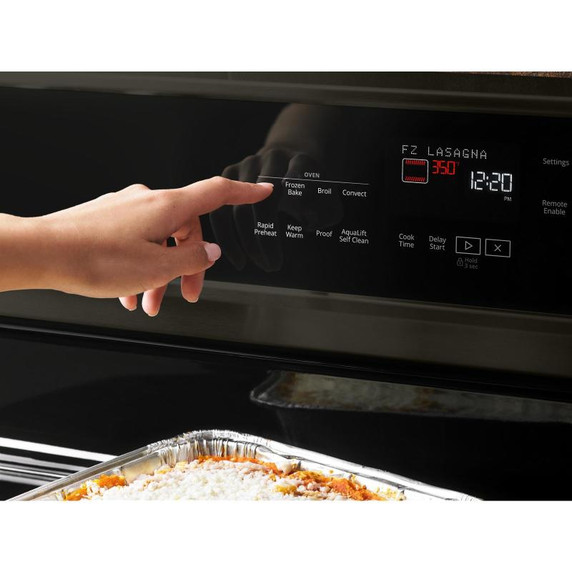

Oven Control TypeElectronic Touch
Number Of Oven Racks3
Oven Control LocationRear Control
Bake Element Power18000BTU
Convection Element Power Watts900
Number Of Rack Guides7
Convection Element TypeTrue
Convection FunctionsBake Broil Roast Both
Oven Interior Depth In Inches20.75
Oven Interior Width In Inches24.38
Oven Rack Type2 Standard and 1 Max Capacity
Oven Cleaning TypeAquaLift® Self-Clean
Description
Size In30
Range TypeFreestanding
Configuration and Overview
Fuel TypeGas
Refinements
Whr RangeBladed Knob; EZ-2-Lift™ Hinged Grates; Frozen Bake™ Technology; Scan-to-Cook Technology; True Convection
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"
Depth Closed Excluding Handles25.31"
Depth Closed Including Handles27.38"
Depth With Door Open 90 Degree48.0"
Depth27.38"
Gross Weight210.0 lbs.
Height46.5"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)5.8
