EZ-2-Lift™ Hinged Cast-Iron GratesGet quick access to spills on the cooktop with our industry-first EZ-2-Lift™ hinged cast-iron grates. The hinged design lets you wipe up under them without removing them. For a more thorough clean, the grates are also dishwasher-safe.
Frozen Bake™ technologySkip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.

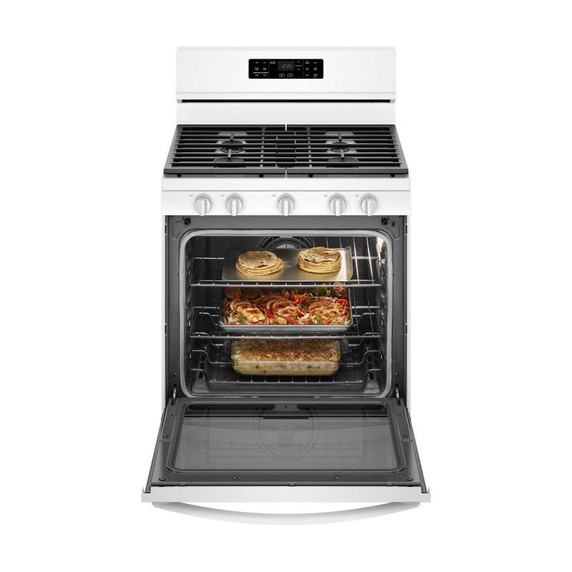

Fan Convection CookingCook meals consistently with a fan in the back of the oven that distributes hot air more efficiently. This helps eliminate cold spots so you can bake on any rack.
Fingerprint ResistantAvailable in black stainless and stainless finishes that are easy to clean and resist fingerprints and smudges.

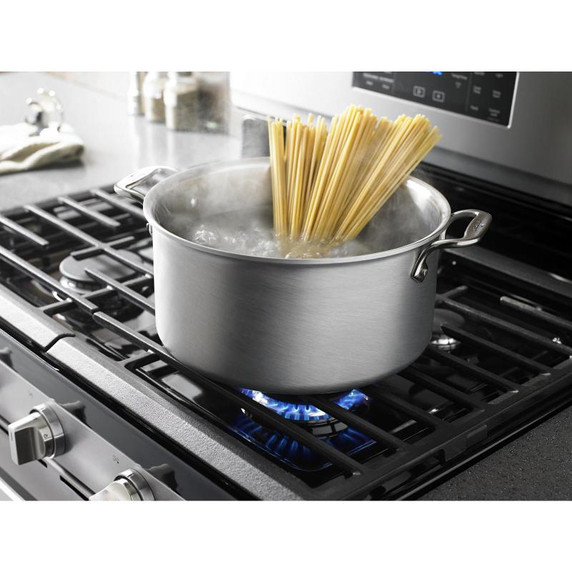

SpeedHeat™ BurnerGet dinner to the table fast with this burner that generates the high heat needed to sear and boil quickly.

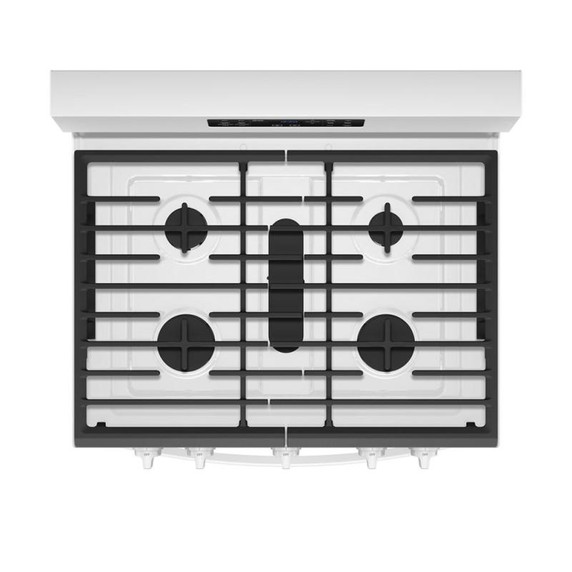

Center Oval BurnerEasily fit large griddles and other longer cookware on this fifth burner so they heat evenly on the range top.
Keep Warm SettingEep dishes ready to serve while you work on the rest of the meal. This setting delivers low heat to the oven to keep prepared dishes from getting cold.
AquaLift® Self-Cleaning TechnologyAquaLift® Self-Cleaning Technology
Temperature SensorGet evenly-baked food with a sensor that monitors oven temperature and adjusts the cooking elements.
GriddleMake pancakes, grill vegetables or sear steaks with the included griddle that lets you cook breakfast, lunch and dinner right on the cooktop.
5.8 cu. ft. CapacityCook even your largest meals with 5.8 cu. ft. capacity.
Large Oven WindowKeep an eye on your meal through the large oven window.
Dishwasher-safe knobsMake cleanup easy by washing knobs right in the dishwasher.
Designed, engineered and assembled in the U.S.A.Designed, engineered and assembled in the U.S.A.
Country Of OriginUSA
Optional AccessoriesW11123246, 4396096RB
Extended Service Plan ParentEW06IW4Y, EW06IW1Y, EW06IW2Y
Product To Product PairsWVU17UC0JW, WVU17UC0JS, WVW53UC0LS, WVU57UC0FS, WVW57UC0FS, WVW51UC0LS, UXT5530AAS, WVW53UC0HV, WVW73UC0LS, WVU37UC0FS, UVL5430JSS
Dishwasher SafeOui
Matte Finish Vs Satin FinishFinition Mate
Cast Iron Vs PorecelainGrilles coulées en porcelaine
Volts120
Hz60
Amps15
Power Cord IncludedOui
Handle MaterialMétal
Handle ColorBlanc
Handle TypePoignée facilement accessible
Door RemovableOui
Drawer TypeTiroir de rangement
Size In30
Range TypeNon encastrée
Oven Cooking SystemConvection
Number Of Oven Lights1
Number Of Oven Racks3
Oven Control LocationRear Control
Number Of Rack Guides7
Oven Interior Depth In Inches20.75
Oven Interior Width In Inches24.38
Broiler Element Power11,000 BTU
Cooktop Surface MaterialAcier revêtu de porcelaine
Hidden Bake ElementOui
Oven Light Switch LocationContrôle du four
Broiler LocationDessus du four
Oven Rack Type2 Norme and 1 Capacité maximale
Convection Element TypeVentilateur simple
Convection FunctionsCuisson
Interior ColorGris
Oven Cleaning TypeAutonettoyage AquaLift®

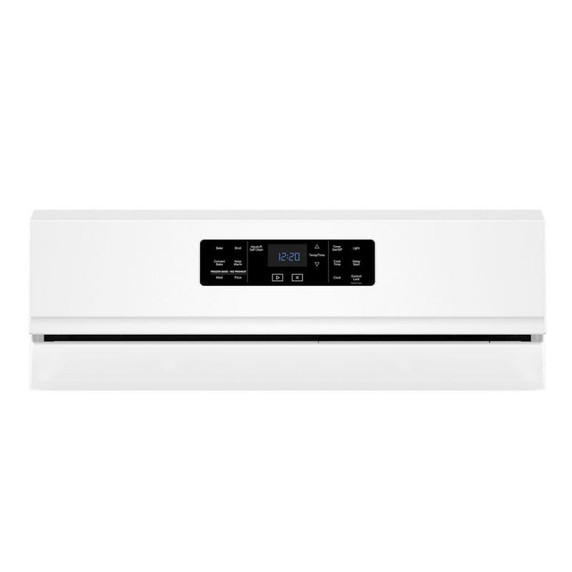

Oven Control TypeCommandes numériques
Bake Element Power18000 BTU
Number Of Cooking Element Burners5
Right Front Element Burner Power15000BTU
Number Of Grates2
Left Front Element Burner Power18000BTU
Right Rear Element Burner Power5000BTU
Left Rear Element Burner Power9500BTU
Center Rear Element Burner Power8000BTU
Center Rear Element Burner TypeBrûleur scellé
Cooktop Control LocationAvant
Cooktop Control TypeBoutons
Cooktop Element StyleBrûleurs scellés
Left Rear Element Burner TypeBrûleur scellé
Right Front Element Burner TypeBrûleur scellé
Right Rear Element Burner TypeMijoter
Auto Re IgnitionNon
Cooktop Surface ColorBlanc
Grate DetailsEncastré; Finition Mate; Grilles coulées en porcelaine; Va au lave-vaisselle; porte battante
Left Front Element Burner TypeHors de porté
ULOui
CULOui
Fuel TypeGaz
Oven ConfigurationFour simple
Range ConfigurationNon encastré
GriddleOui
Hot Surface Indicator LightNon
LP ConvertibleOui - Trousse comprise
Natural Gas ConvertibleOui
Power Outage CompatibleOui
Heating Element On Indicator LightNon
Automatic Convection Conversion Temperature AdjustNon
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"
Depth Closed Excluding Handles25.31"
Depth Closed Including Handles27.38"
Depth With Door Open 90 Degree48.0"

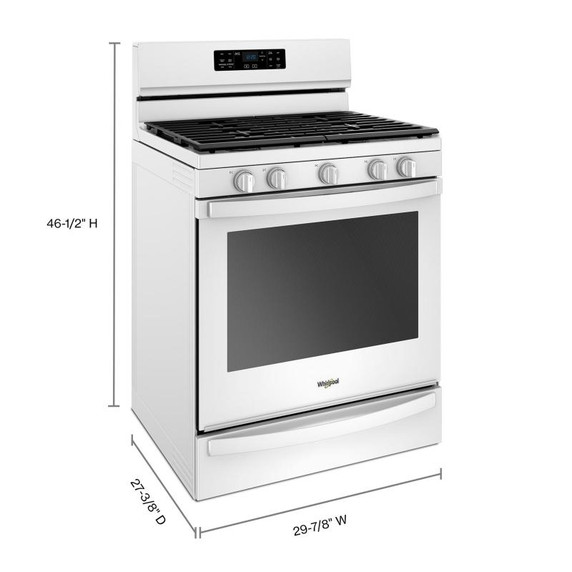

Depth27.88"
Gross Weight208.0 lbs.
Height46.5"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)5.8
