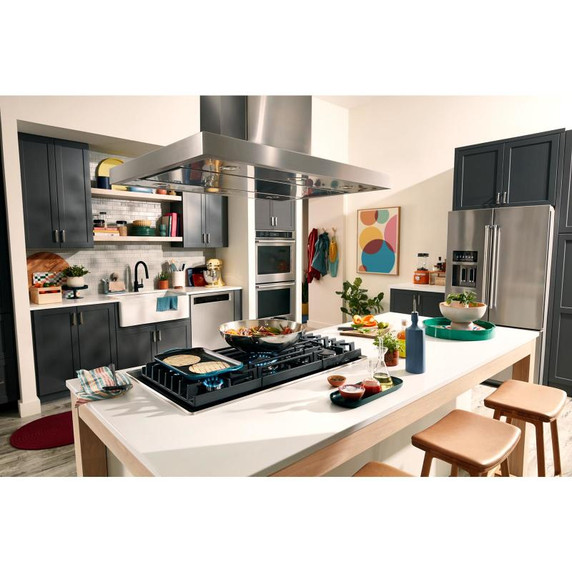

Kitchenaid® 36" Gas-on-Glass Cooktop KCGG536PBL
Specifications
Country Of OriginUSA
Optional AccessoriesW10216179
Extended Service Plan Parent
Product To Product Pairs
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Certifications
ULYes
ADA CompliantYes
Cooktop Details
Cooktop Element StyleSealed Burners
Cooktop ConfigurationAll Burners
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Left Front Element Burner TypeStandard
Right Front Element Burner TypeStandard
Right Front Element Burner Power15000BTU
Right Rear Element Burner TypeSimmer
Left Front Element Burner Power9100BTU
Left Rear Element Burner Power9100BTU
Right Rear Element Burner Power5000BTU
Center Element Burner Power18000BTU
Features
Hot Surface Indicator LightNo
GriddleN/A
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
LP ConvertibleYes - Kit Included
Power BoostNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Description
Size In36
Cooktop TypeTraditional
Combinations With OvenKOES127P; KOES130P; KOES527P; KOES530P; KOES730P
Controls
Control TypeManual
Control LocationFront
Knob TypeMetal
Configuration and Overview
Fuel TypeGas
Compatibility
Connectivity
Depth21.6"
Height5.31"
Net Weight79.37 lbs.
Width36.88"
Cutout Depth19.0"
Cutout Height2.88"
Cutout Width35.63"
Carton Depth Inch24.96
Carton Height Inch12.99
Carton Width Inch40.65
