Kitchenaid® 30-Inch 4-Burner Dual Fuel Downdraft Front Control Range KSDG950ESS
KitchenAid
Kitchenaid® 30-Inch 4-Burner Dual Fuel Downdraft Front Control Range KSDG950ESS
DowndraftIntegrates the ventilation system right into the range so that a separate hood is not needed. Smoke and odors can be removed and taken outside or air can be filtered and recirculated inside. A duct free kit can be purchased separately.
Even-Heat™ True ConvectionProduces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
Steam RackOffers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
6.4 cu ft capacitythis gas slide-in range provides a large cooking capacity that easily handles multiple dishes at once.
4 burners (5k, 9.2k, 15k and 17k)Provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.
EasyConvect™ ConversionTakes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
Aqualift®Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
Glass Touch ControlsOffer an intuitive, easy-to-use touch screen experience.
SatinGlide® Max RacksMove smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Side Trim Accessory KitThis optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
Controls
Knob TypeWeighted
Knob ColorStainless Steel
Electronic Display TypeDigital
Electrical
Volts240
Power Cord IncludedNo
Amps40
Configuration and Overview
Fuel TypeDual Fuel
Energy
Annual Energy Usage Kwh393
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainCast Iron Grates
Extended Service Plan ParentEW09IW2Y, EW09IW4Y, EW09IW1Y
Optional AccessoriesW10675028, W10731886, W10731887, W10768190, W10655450, W10655449, W10655448, W10432544, W10731885, W10285447, W10675027, W10115773, W10675026, W10800530
Product To Product PairsKVIB606DSS, KRFF302ESS, KXD4630YSS, KRFC302ESS, KFDD500ESS, KBFN506ESS, KVUB600DSS, KVWB600DSS, KOWT104ESS, KVWB606DSS, KVWB406DSS, KRBR102ESS, KOWT100ESS, KRBL102ESS, KBFN502ESS, KRFC704FPS, KXD4636YSS, KVWB400DSS, KMBP107ESS, KTTS505ESS, KOWT107ESS, KMBP100ESS, KBBR306ESS, KFGD500ESS, KVUB606DSS, KRFF300ESS, KRFF305ESS, KBBL306ESS, KRMF706ESS
Features
Hot Surface Indicator LightNo
LP ConvertibleYes
Automatic Convection Conversion Temperature AdjustYes
Power Outage CompatibleNo
Heating Element On Indicator LightNo
Refinements
Kad RangeADA Compliant; Downdraft; EasyConvect™ Conversion; Even-Heat™ True Convection; FIT System; SatinGlide™ Racks; Steam Rack
Certifications
ULYes
ADA CompliantYes
Energy Rating Kwh Year393
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Handle TypeTowel Bar
Door RemovableYes
Drawer TypeAccess Panel
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationSlide-In
Description
Size In30
Range TypeSlide-in
Details
Broiler LocationTop of Oven
Convection FunctionsBake; Broil; Roast
Hidden Bake ElementYes
Oven Light Switch LocationOven Control
Interior ColorGrey
Number Of Oven Lights2
Oven Cooking SystemConvection
Oven Light TypeIncandescent
Convection Element TypeFan
Oven Control TypeElectronic Touch
Broiler Element Power4000W
Number Of Oven Racks3
Cooktop Surface MaterialStainless Steel
Number Of Rack Guides7
Oven Interior Depth In Inches20.75
Bake Element Power3600W
Oven Rack Type1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack
Oven Interior Width In Inches24.13
Convection Element Power Watts3200
Oven Cleaning TypeAquaLift® Self-Clean
Cooktop Details

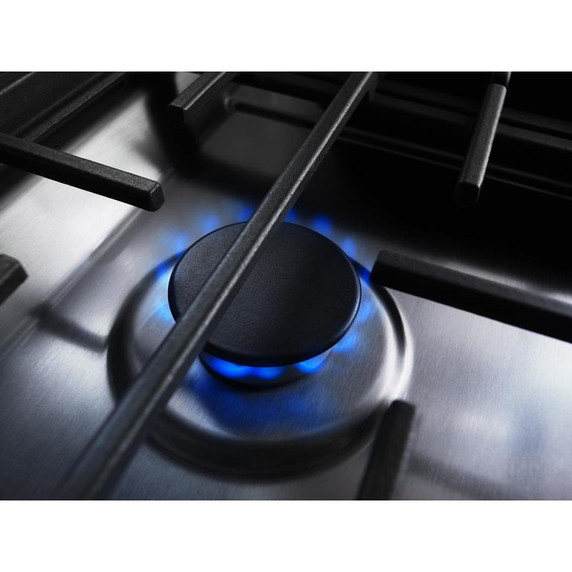

Cooktop Element StyleSealed Burners
Number Of Grates3
Number Of Cooking Element Burners4
Left Front Element Burner TypeSealed Burner
Right Rear Element Burner TypeSealed Burner
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner TypeSealed Burner
Left Rear Element Burner Power5000BTU
Right Front Element Burner Power15000BTU
Auto Re IgnitionNo
Cooktop Surface ColorStainless Steel
Left Front Element Burner Power17000BTU
Right Rear Element Burner Power9200BTU
Grate DetailsCast Iron Grates; Continuous; Dishwasher Safe; Matte Finish
Carton Depth30.51"
Carton Height43.5"
Carton Width31.5"

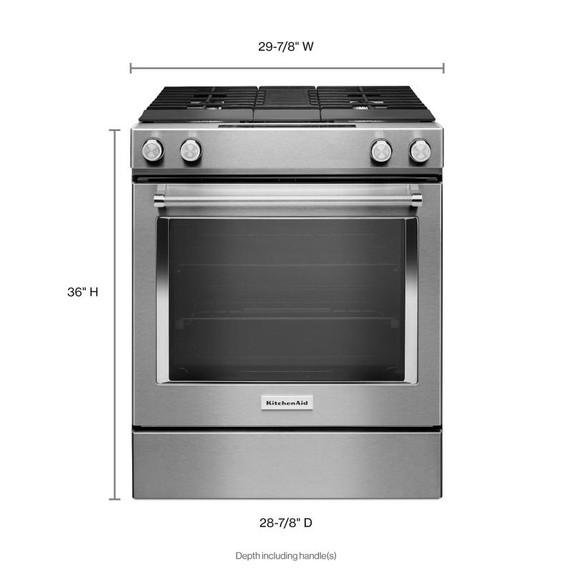

Depth Closed Including Handles28.88"
Depth With Door Open 90 Degree48.75"
Gross Weight205.0 lbs.
Height36.0"
Width29.88"
Capacity FT3 (cubic feet)6.4
