KitchenAid® 30" Double Wall Oven with Air Fry Mode KOED530PPS
KitchenAid Built-In Savings Event, July 11 - September 25, 2024. Save $600 when you purchase 3 qualifying KitchenAid® built-in appliances, save 800 when you purchase 4 qualifying KitchenAid® built-in appliances, or savings of $1200 when you purchase 5 or more qualifying KitchenAid® built-in appliances!
*Comparativement à la friture à l’huile traditionnelle.
Air Fry ModeUses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.**When compared to deep frying.
Air Fry ModeAir Fry Mode
Dishwasher-Safe Air Fry basketAllows air to circulate around food as it cooks for crisping and browning. Place in dishwasher for easy cleanup.
Dishwasher-Safe Air Fry BasketAllows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
Even-Heat™ True ConvectionFeatures a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
Even-Heat™ True ConvectionEven-Heat™ True Convection
Integrated Meat ThermometerTakes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
Built-In ThermometerBuilt-In Thermometer

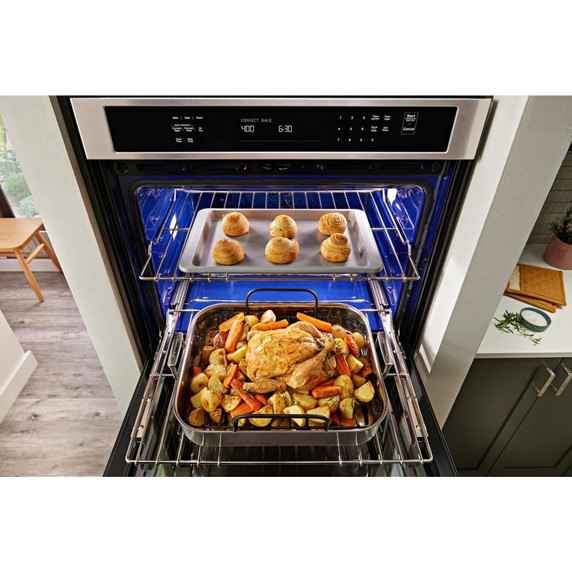

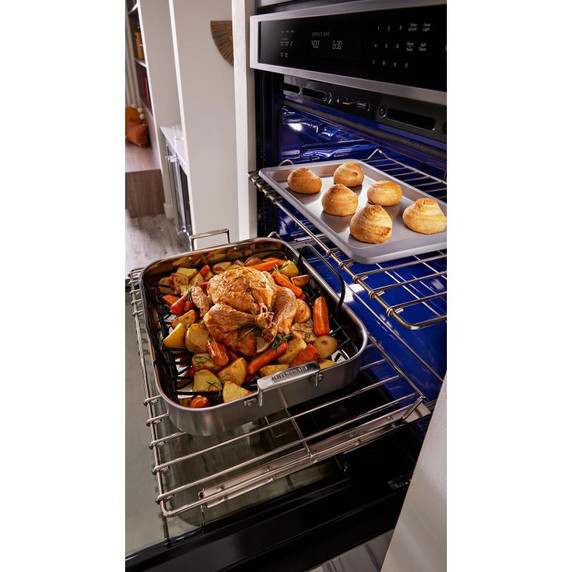

SatinGlide™ Roll-Out Extension Racks (Both Ovens)Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
SatinGlide™ Roll-Out Extension RackSatinGlide™ Roll-Out Extension Rack
FIT System Limited GuaranteeAllows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.**On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit kitchenaid.com/promotions.
EasyConvect™ Conversion SystemAutomatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
Even-Heat™ PreheatRaises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.
4,000-Watt Broil ElementUses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.

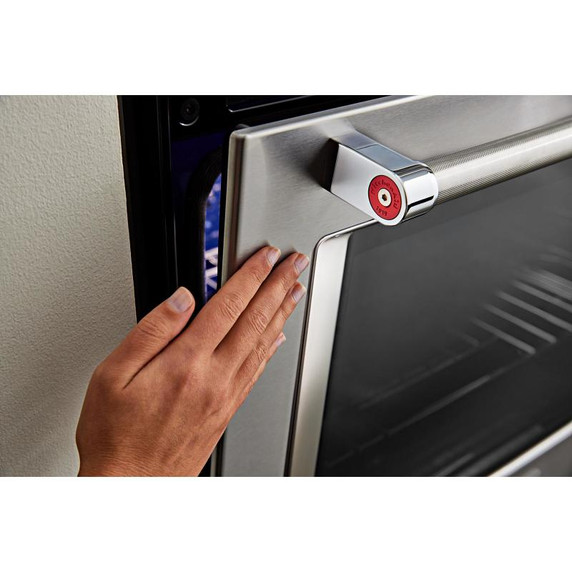

Self-Close DoorsFeature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
PrintShield™ FinishResists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
Self-Cleaning CycleUses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
5.0 Cu. Ft. Oven Capacity (Both Ovens)In both ovens provides space and flexibility to cook multiple dishes at different temperatures, so you can roast a whole turkey with sides in one, while baking dessert in the other.
Star-K CertifiedTo meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
What's in the boxDouble Wall Oven includes- Dishwasher-Safe Air Fry Basket- Integrated Meat Thermometer
Specifications
Country Of OriginUSA
Extended Service Plan Parent
Product To Product Pairs
Optional AccessoriesW11594553, W11570325
Electrical
Hz60
Volts240
Amps40
Power Cord IncludedNon
Description
Size In30
Details
Number Of Broil Elements1
Lower Oven Interior Depth In Inches19.0
Lower Oven Interior Height In Inches18.0
Lower Oven Number Of Oven Lights2
Number Of Bake Elements2
Number Of Lower Oven Racks3
Number Of Lower Rack Guides6
Number Of Upper Oven Racks3
Number Of Upper Rack Guides6
Upper Oven Interior Depth In Inches19.0
Upper Oven Interior Height In Inches18.0
Upper Oven Number Of Oven Lights2
Upper Oven Interior Width In Inches25.0
Lower Oven Interior Width In Inches25
Hidden Bake ElementOui
Oven Cleaning TypeAutonettoyant
Interior CoatingPorcelaine
Light TypeHalogène
Bake Element Power2800W deux fours
Broiler Element Power4 000W deux fours
Convection Element Power Watts3200 Tous les deux
Convection FunctionsConversion pour la cuisson par convection; Cuisson; Grillage
Oven Cooking SystemConvection deux fours
Configuration
Oven ConfigurationDouble Oven
Compatibility
Connectivity
Certifications
Energy Rating Kwh Year355
ULOui
CULOui
Energy
Annual Energy Usage Kwh355
Configuration and Overview
Fuel TypeÉlectrique

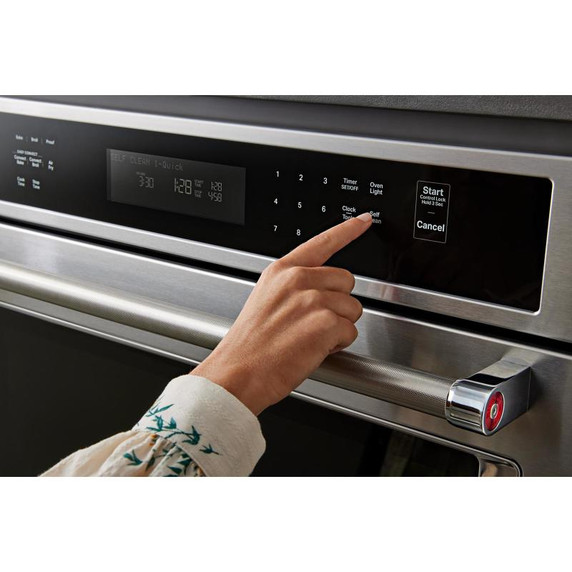

Controls
Control TypeÉlectronique
Display ColorBlanc
Features
Power On Indicator LightOui
Language ConversionAnglais/Français/Espagnol
Carton Depth30.8"
Carton Height53.5"
Carton Width34.8"
Depth Closed Excluding Handles24.5"
Depth Closed Including Handles27.13"
Depth With Door Open 90 Degree46.75"
Depth27.13"
Gross Weight296.0 lbs.
Height50.81"
Net Weight270.0 lbs.
Width29.75"
Cutout Depth24.0"
Cutout Height50.25"
Cutout Width28.5"
Capacity FT3 (cubic feet)10.0
