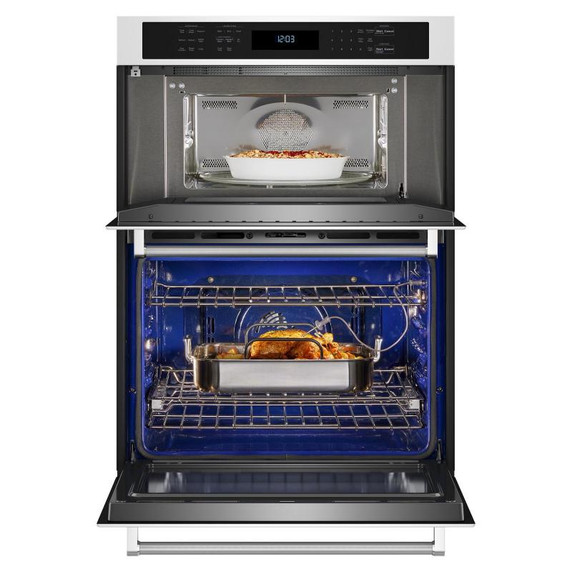

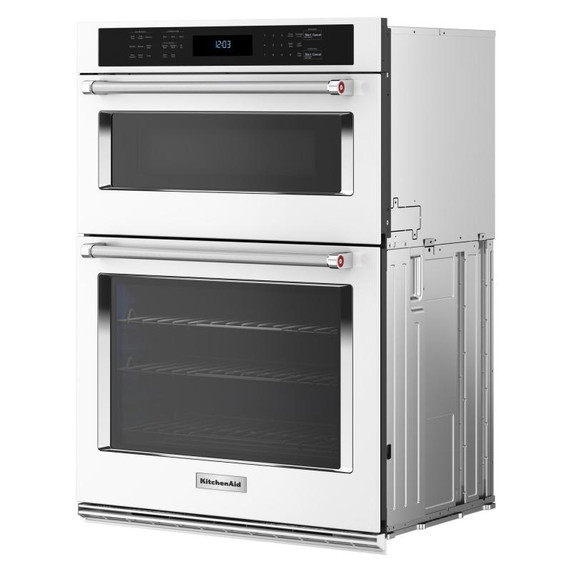

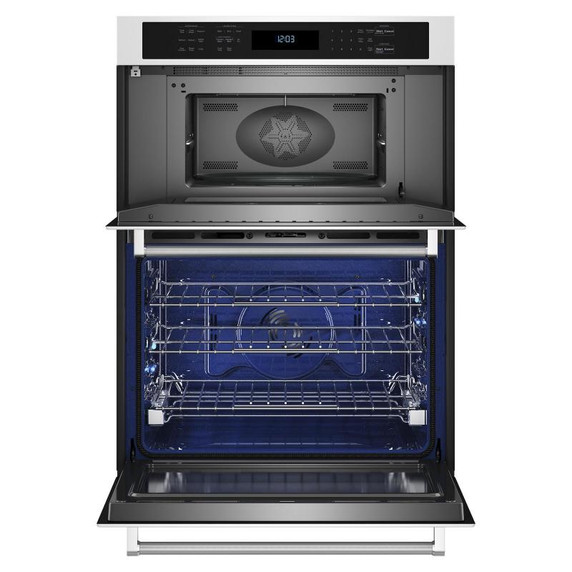

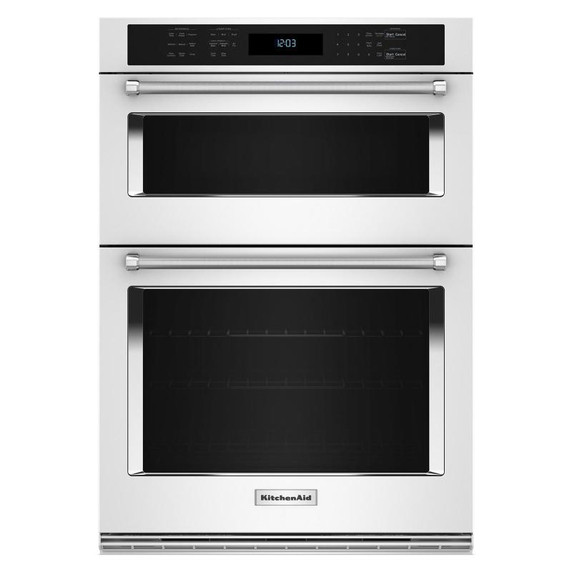

KitchenAid® 30" Combination Microwave Wall Oven with Air Fry Mode KOEC530PWH
KitchenAid
KitchenAid® 30" Combination Microwave Wall Oven with Air Fry Mode KOEC530PWH
Air Fry ModeUses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.*
*When compared to deep frying.
Dishwasher-Safe Air Fry BasketAllows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
Even-Heat™ True ConvectionFeatures a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
Integrated Meat ThermometerTakes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.
EasyConvect™ Conversion SystemAutomatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.

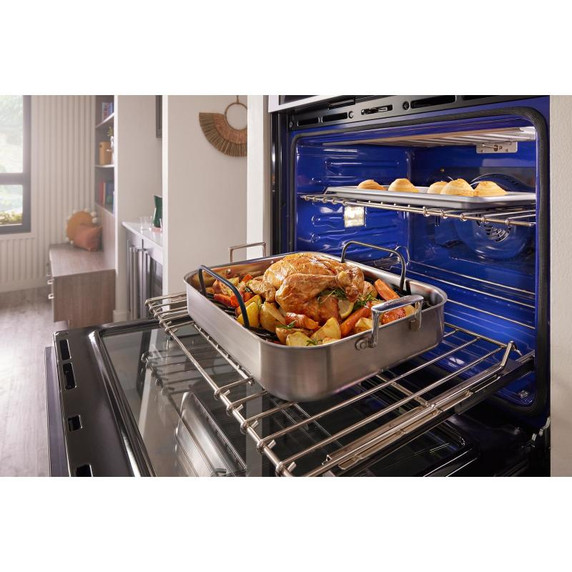

SatinGlide™ Roll-Out Extension RackMakes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
4,000-Watt Broil ElementUses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.
Self-Close DoorsFeature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
FIT System Limited GuaranteeAllows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.*
*On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified.
5.0 Cu. Ft. Oven CapacityProvides room to cook multiple dishes, so you can cook a whole turkey or roast and sides all at once.
Even-Heat™ PreheatRaises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.
Self-Cleaning CycleUses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
Star-K CertifiedTo meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
What's in the boxCombination Microwave Wall Oven includes
- Dishwasher-Safe Air Fry Basket
- Microwave Crisper Pan
- Integrated Meat Thermometer

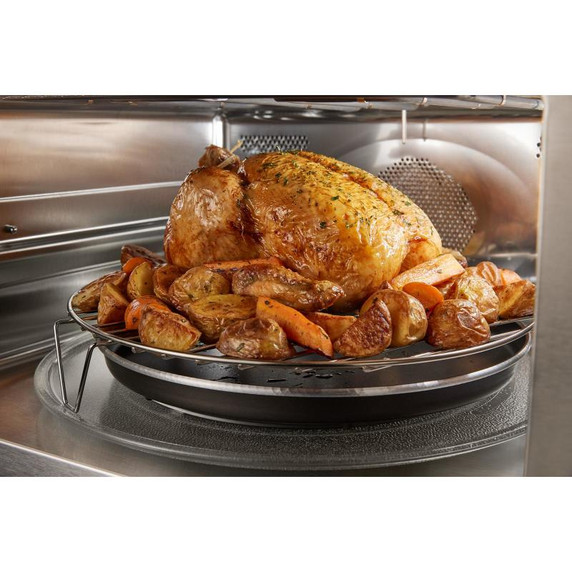

CrispWave™ Technology (Microwave Oven)Uses microwave power to heat the included crisper pan and a 1600-watt element in the top of the microwave to brown and broil, allowing you to grill meats, crisp pizza, fry bacon and more, right in the microwave.

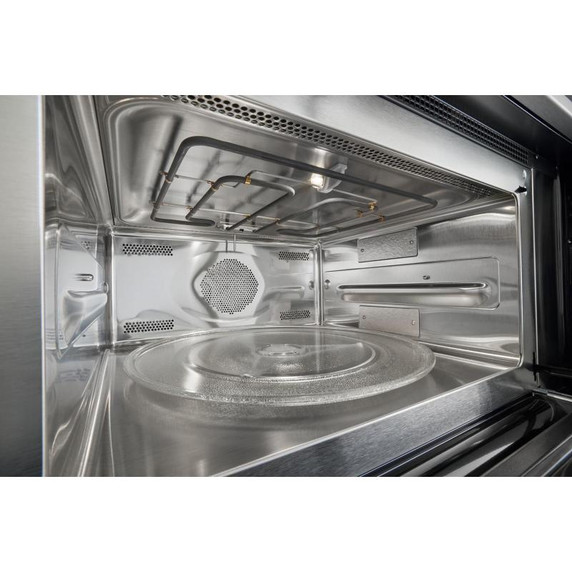

Microwave Convection CookingUses dual heating elements and a fan to reach temperatures up to 450°F, turning the microwave into a second oven for small batch bakes like cookies, madeleines and cakes.
1.4 Cu. Ft. Microwave Oven CapacityComfortably fits a variety of dishes with enough height for a mixing bowl and width for a 9" x 13" casserole dish.

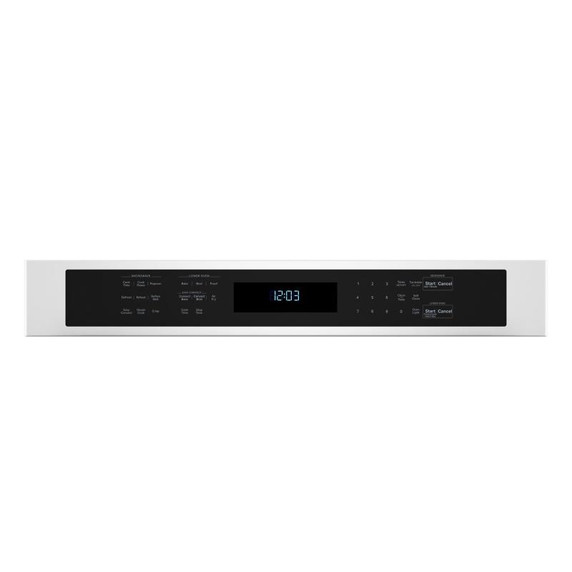

Controls
Control TypeElectronic
Display ColorWhite
Microwave
Microwave SelectionsAdd A Minute; Control Lock; Convect; Cook; Cook Power; Cook Time; Crisp Pan; Defrost; Easy Convect; End of Cycle Signal; Off/Cancel; Popcorn; Reheat; Soften/Melt; Sound On/Off; Steam; Time Cook; Timer
Microwave Details
Cooking Power Watts900
ConvectionYes
GrillYes
Interior LightYes, Halogen
Microwave Capacity Cu Ft1.4
TurntableYes
Turntable Diameter Size In14.13
Convection Power Watts1,200
Grill Power Watts1,600
Electrical
Hz60
Volts240
Power Cord IncludedNo
Amps40
Configuration and Overview
Fuel TypeElectric
Compatibility
Connectivity
Refinement KAD
Temperature ProbeYes
Energy
Annual Energy Usage Kwh356
Specifications
Country Of OriginUSA
Sabbath ModeYes
Extended Service Plan Parent
Product To Product Pairs
Optional AccessoriesW11594553, W11570325
Features
Language ConversionEnglish/French/Spanish
Sensor CookingYes - Microwave
Oven SelectionsAir Fry; Auto On; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Language Conversion; Proofing; Rapid Preheat; Sabbath Mode; Start Time; Temperature Probe; Temperature-Sensor Baking; Timer
Certifications
ULYes
Energy Rating Kwh Year356
CULYes
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Configuration
Oven ConfigurationMicrowave Combination
Description
Size In30
Details
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Oven Light TypeHalogen
Bake Element Power2800W
Number Of Oven Lights2
Number Of Rack Guides6
Oven Interior Depth In Inches19.0
Oven Interior Width In Inches25.0
Interior CoatingPorcelain
Number Of Bake Elements1
Number Of Broil Elements1
Oven Interior Height In Inches18.0
Interior ColorBlue
Broiler Element Power4000W
Convection FunctionsBake; Broil; Convection Conversion
Number Of Oven Racks3
Convection Element Power Watts3200
Oven Capacity Cu Ft5
Carton Depth30.8"
Carton Height45.0"
Carton Width34.8"

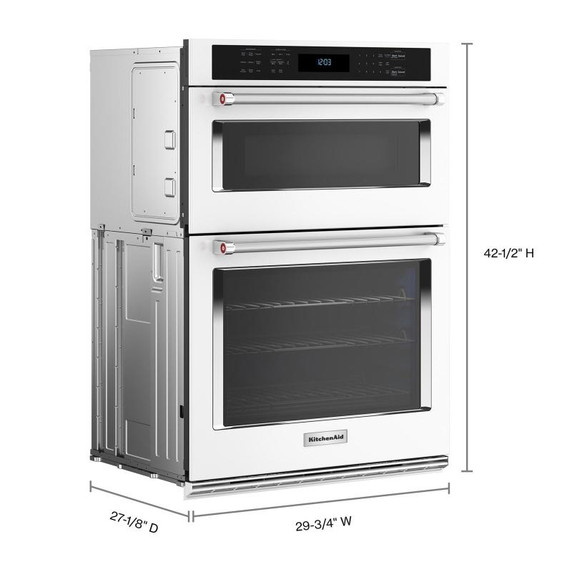

Depth Closed Excluding Handles24.5"
Depth Closed Including Handles27.13"
Depth With Door Open 90 Degree46.75"
Depth27.13"
Gross Weight220.0 lbs.
Height42.5"
Net Weight198.0 lbs.
Width29.75"
Cutout Depth24.0"
Cutout Height41.31"
Cutout Width28.5"
Capacity FT3 (cubic feet)6.4
